PLASTİK KASA IP67 3 in 1 DIM EDİLEBİLİR LED GÜÇ KAYNAKLARI
- Universal AC Besleme Girişi / Tam skala (305VAC’ye kadar)
- Korumalar: Kısa devre / Aşırıyük / Aşırı voltaj / Aşırı sıcaklık
- Dahili aktif PFC fonksiyonu
- Doğal hava sirkülasyonu ile soğutma
- Tam izoleli plastik kasa
- Tamamen IP67 seviyesi ile kuşatılmıştır
- Sınıf 2 güç birimi, FG yok
- Sınıf 2 güç birimi
- LED aydınlatma ve hareketli yazı uygulamaları için ideal
- Aydınlatma için gerekli güvenlik kuralları ile uyumlu
- Kuru/rutubetli/ıslak ortamlar için uygun
- 2 yıl garanti
| MODEL | GİRİŞ | ÇIKIŞ | EBATLAR | |
|---|---|---|---|---|
| 16W | ||||

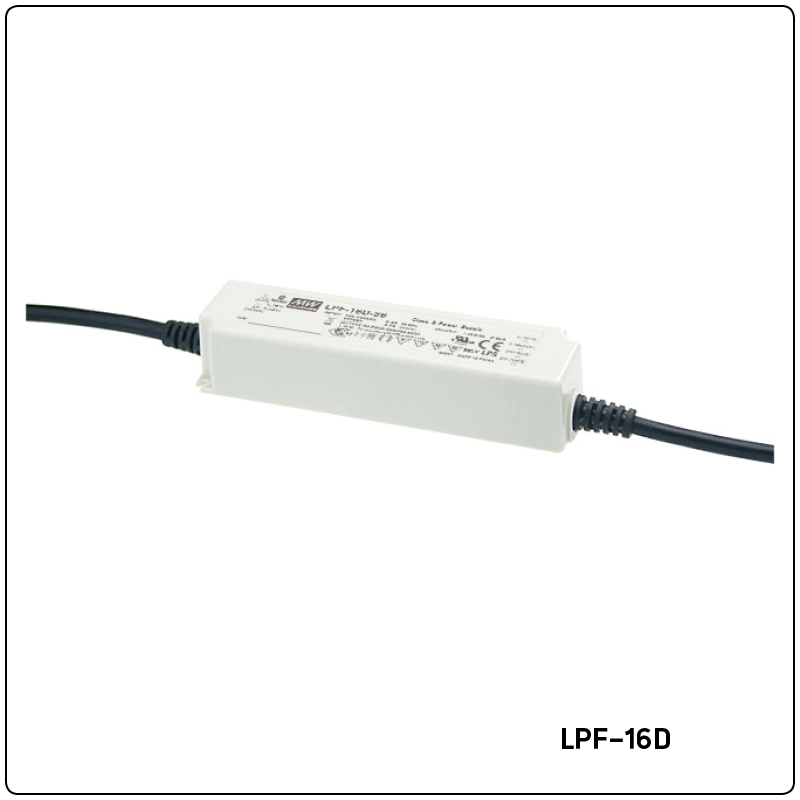

| LPF-16D-12 | 90-305VAC 127-431VDC | 12VDC | 1.34A | 148x40x32 mm |
| LPF-16D-15 | 90-305VAC 127-431VDC | 15VDC | 1.07A | 148x40x32 mm |
| LPF-16D-20 | 90-305VAC 127-431VDC | 20VDC | 0.8A | 148x40x32 mm |
| LPF-16D-24 | 90-305VAC 127-431VDC | 24VDC | 0.67A | 148x40x32 mm |
| LPF-16D-30 | 90-305VAC 127-431VDC | 30VDC | 0.54A | 148x40x32 mm |
| LPF-16D-36 | 90-305VAC 127-431VDC | 36VDC | 0.45A | 148x40x32 mm |
| LPF-16D-42 | 90-305VAC 127-431VDC | 42VDC | 0.39A | 148x40x32 mm |
| LPF-16D-48 | 90-305VAC 127-431VDC | 48VDC | 0.34A | 148x40x32 mm |
| LPF-16D-54 | 90-305VAC 127-431VDC | 54VDC | 0.3A | 148x40x32 mm |
| 25W | ||||

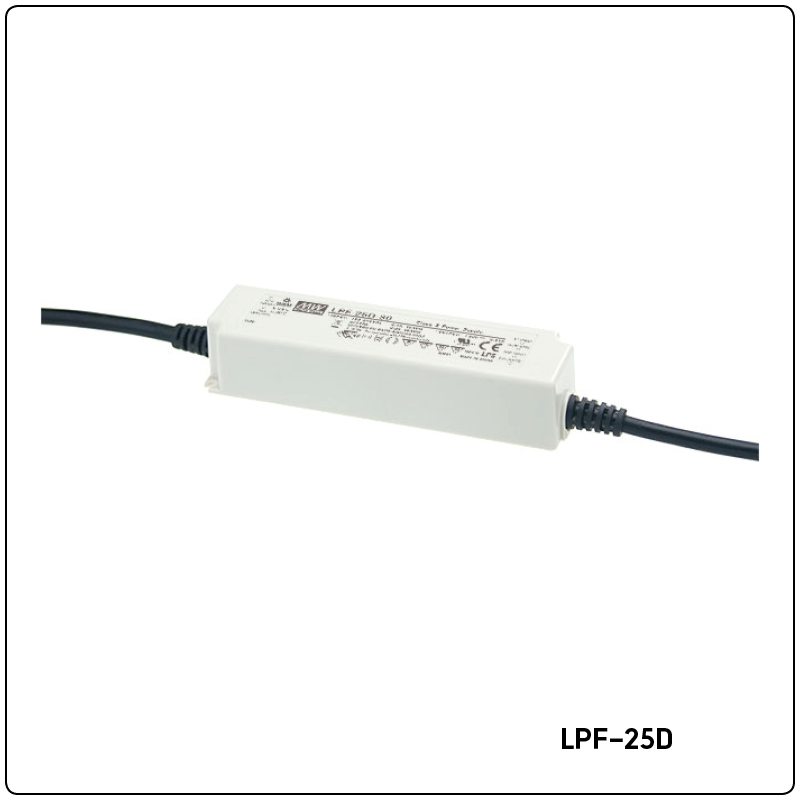

| LPF-25D-12 | 90-305VAC 127-431VDC | 12VDC | 2.1A | 148x40x32 mm |
| LPF-25D-15 | 90-305VAC 127-431VDC | 15VDC | 1.67A | 148x40x32 mm |
| LPF-25D-20 | 90-305VAC 127-431VDC | 20VDC | 1.25A | 148x40x32 mm |
| LPF-25D-24 | 90-305VAC 127-431VDC | 24VDC | 1.05A | 148x40x32 mm |
| LPF-25D-30 | 90-305VAC 127-431VDC | 30VDC | 0.84A | 148x40x32 mm |
| LPF-25D-36 | 90-305VAC 127-431VDC | 36VDC | 0.7A | 148x40x32 mm |
| LPF-25D-42 | 90-305VAC 127-431VDC | 42VDC | 0.6A | 148x40x32 mm |
| LPF-25D-48 | 90-305VAC 127-431VDC | 48VDC | 0.53A | 148x40x32 mm |
| LPF-25D-54 | 90-305VAC 127-431VDC | 54VDC | 0.47A | 148x40x32 mm |
| 40W | ||||

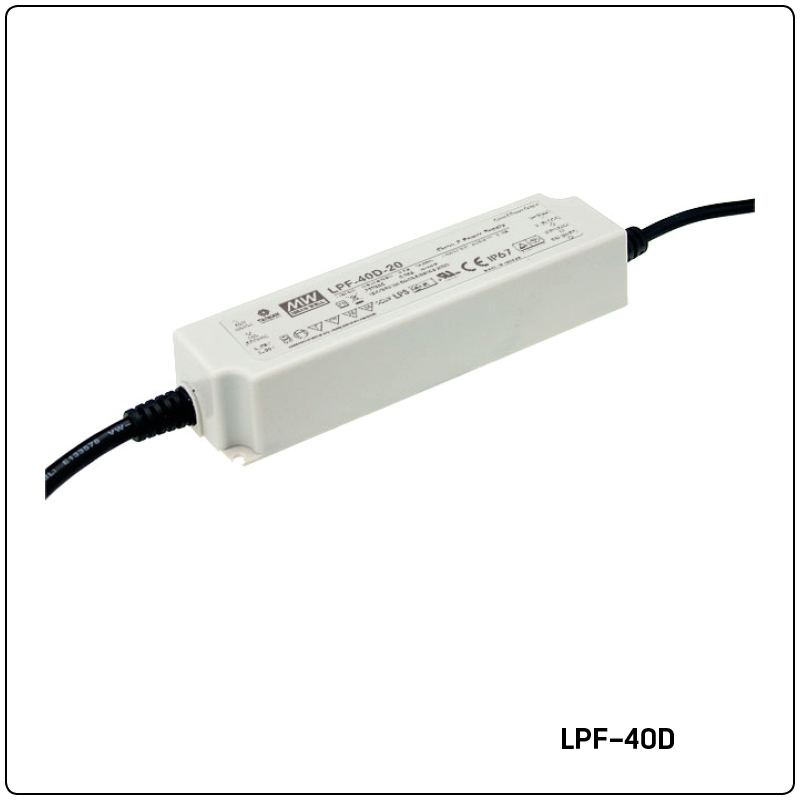

| LPF-40D-12 | 90-305VAC 127-431VDC | 12VDC | 3.34A | 162.5x43x32 mm |
| LPF-40D-15 | 90-305VAC 127-431VDC | 15VDC | 2.67A | 162.5x43x32 mm |
| LPF-40D-20 | 90-305VAC 127-431VDC | 20VDC | 2A | 162.5x43x32 mm |
| LPF-40D-24 | 90-305VAC 127-431VDC | 24VDC | 1.67A | 162.5x43x32 mm |
| LPF-40D-30 | 90-305VAC 127-431VDC | 30VDC | 1.34A | 162.5x43x32 mm |
| LPF-40D-36 | 90-305VAC 127-431VDC | 36VDC | 1.12A | 162.5x43x32 mm |
| LPF-40D-42 | 90-305VAC 127-431VDC | 42VDC | 0.96A | 162.5x43x32 mm |
| LPF-40D-48 | 90-305VAC 127-431VDC | 48VDC | 0.84A | 162.5x43x32 mm |
| LPF-40D-54 | 90-305VAC 127-431VDC | 54VDC | 0.76A | 162.5x43x32 mm |
| 60W | ||||
| LPF-60D-12 | 90-305VAC 127-431VDC | 12VDC | 5A | 162.5x43x32 mm |
| LPF-60D-15 | 90-305VAC 127-431VDC | 15VDC | 4A | 162.5x43x32 mm |
| LPF-60D-20 | 90-305VAC 127-431VDC | 20VDC | 3A | 162.5x43x32 mm |
| LPF-60D-24 | 90-305VAC 127-431VDC | 24VDC | 2.5A | 162.5x43x32 mm |
| LPF-60D-30 | 90-305VAC 127-431VDC | 30VDC | 2A | 162.5x43x32 mm |
| LPF-60D-36 | 90-305VAC 127-431VDC | 36VDC | 1.67A | 162.5x43x32 mm |
| LPF-60D-42 | 90-305VAC 127-431VDC | 42VDC | 1.43A | 162.5x43x32 mm |
| LPF-60D-48 | 90-305VAC 127-431VDC | 48VDC | 1.25A | 162.5x43x32 mm |
| LPF-60D-54 | 90-305VAC 127-431VDC | 54VDC | 1.12A | 162.5x43x32 mm |
| 90W | ||||

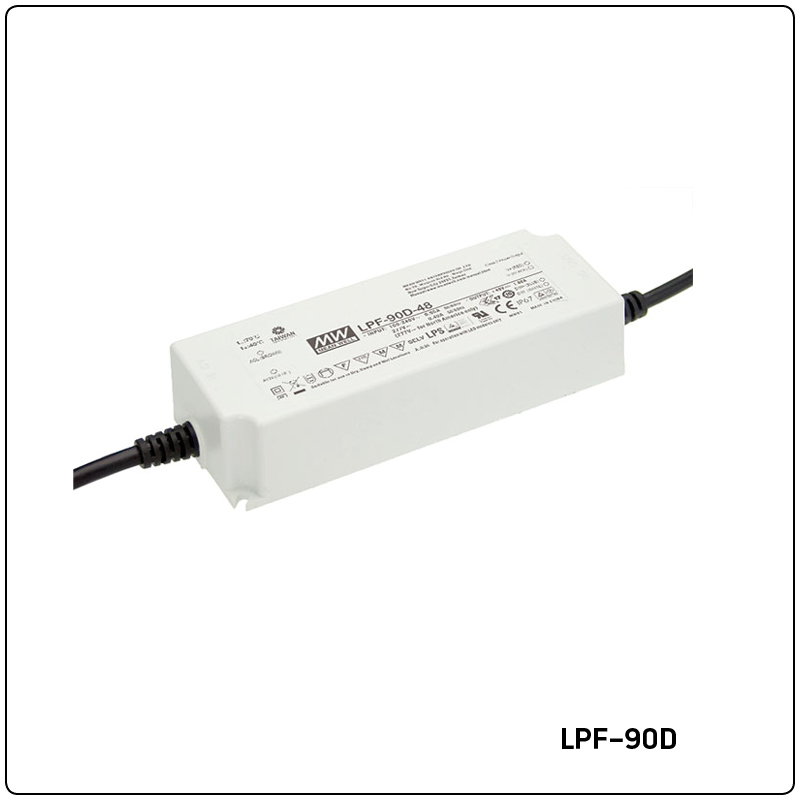

| LPF-90D-15 | 90-305VAC 127-431VDC | 15VDC | 5A | 161x61x36 mm |
| LPF-90D-20 | 90-305VAC 127-431VDC | 20VDC | 4.5A | 161x61x36 mm |
| LPF-90D-24 | 90-305VAC 127-431VDC | 24VDC | 3.75A | 161x61x36 mm |
| LPF-90D-30 | 90-305VAC 127-431VDC | 30VDC | 3A | 161x61x36 mm |
| LPF-90D-36 | 90-305VAC 127-431VDC | 36VDC | 2.5A | 161x61x36 mm |
| LPF-90D-42 | 90-305VAC 127-431VDC | 42VDC | 2.15A | 161x61x36 mm |
| LPF-90D-48 | 90-305VAC 127-431VDC | 48VDC | 1.88A | 161x61x36 mm |
| LPF-90D-54 | 90-305VAC 127-431VDC | 54VDC | 1.67A | 161x61x36 mm |
- Ebatlar (Boy x En x Yükseklik) mm.
