Gübreleme Kontrol Cihazı

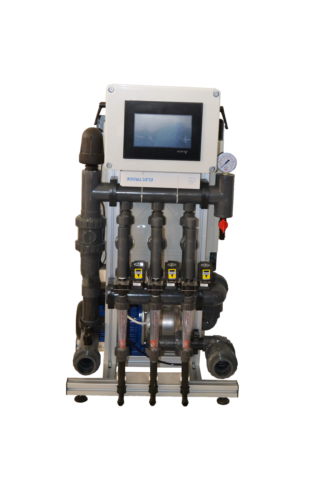

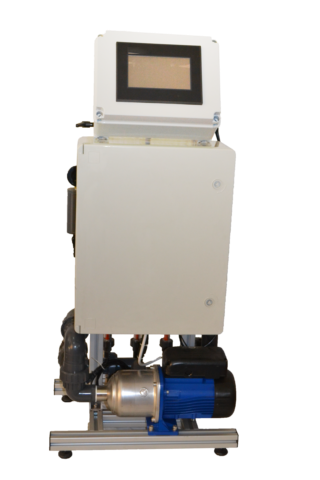

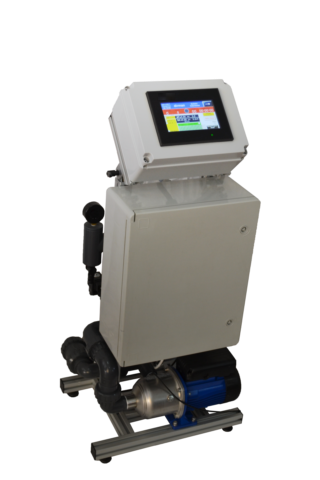

The Fertigation Unit is a fully configurable fertilizer/acid dosing unit – a highly cost-effective solution for

precise irrigation and fertigation.

Main line pressure range: up to 4 bars.

Main line flow rate range: from 1 to 50 m3/h.

  • A modular fertigation and irrigation system for soil or substrate applications with minimum investment
  • Efficient usage of water, fertilizers and energy
  • Highly profitable price/performance ratio
  • Venturi operating principle – no moving parts
  • Fits easily into any existing irrigation system
  • Precise fertigation based on high-accuracy dosing channels
  • Quick action dosing valves
  • 2 fertilizer and 1 acid dosing channels
  • Fertigation recipes can be changed quickly and efficiently

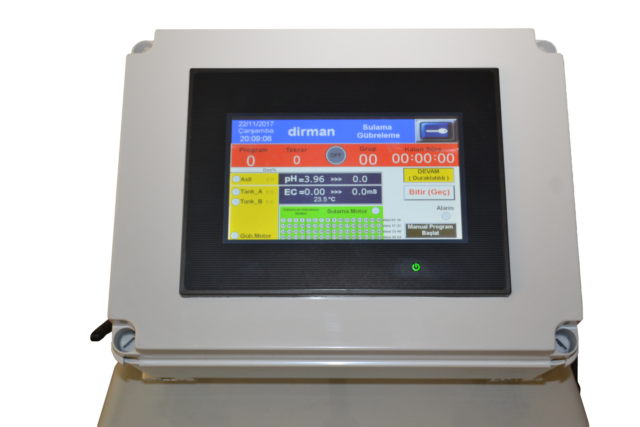

  • Can be operated manually or fully computerized
  • High-quality components and PVC pipe work
  • Aluminum, corrosion-resistant frame with adjustable legs
  • Easy to install and to maintain
  • Fully controlled dosing and mixing of fertilizers/acid with source water into a homogenous nutrientsolution.
  • EC/pH correction of the nutrient solution.

Fertigation Unit doses the various fertilizers and acid into a homogeneous solution and injects it into the

irrigation water main line. The suction of the fertilizers and acid in the dosing channels is based on the

Venturi principle. This requires a pressure differential – available on the main line or supplied by the main

line pump or the Fertigation Unit ‘s dosing booster.
